fALL PROTECTION





Miller T4500 HARNESS Capture.PNG

MIL T4500/UAK

Titan II Non-Stretch Harnesses



  • Easier vertical adjustability that stays in place, slip resistant back D-ring pad and forward positioned side D-rings, keeping your tool bags in the right place

  • More comfort and better fit with lighter, strategically-placed padding that provides optimal airflow

  • Increased worksite safety with Hi-Viz color webbing and ANSI Z359.11 compliance

  • Quick availability with in-stock items

Rated to 400 lbs. capacity


Miller T6122-Z76ftafc Capture.PNG

Miller T6122-Z7/6FTAFC

Titan™ Shock-Absorbing Lanyards

Made of lightweight, durable polyester webbing
Pack-type style includes the shock absorber pack that expands to reduce fall forces while a back-up safety strap deploys
Locking snap hook harness connection
Certified to CSA standard Z259.11, Class E4

Type: Shock-absorbing
CSA Class: E4
No. of Legs: 2
Harness Connection: Snap Hook
Anchorage Connection: Rebar Hook
Material: Polyester
Shock Absorber Type: Pack
Length: 6'


Ms. MIller Capture.PNG

MIL E570/URN

Ms. Miller Harness

The E570 Ms. Miller Harness is the only full-body harness on
the market specifically designed for the female worker. The
special design keeps shoulder straps at the side and away
from the chest, offers better hip support, and increases
comfort.

Certification
Meets OSHA 1910.66, 1926.104, 1926.502, ANSI A10.32,
Z359.1 and CSA Z259.10-06 specifications.


Miller HL4ftsls Capture.PNG

MIL HL4FTSLS

Hybrid Energy-Absorbing Lanyards

Hybrid E4/E6 SofStop lanyard, 1'' web, snap hook at ends x 4 ft

Now, for the first time to market, Honeywell has designed one lanyard that can be used by workers across weight classes, while still being CSA compliant. Honeywell Hybrid Energy-Absorbing Lanyards make choosing the right equipment a little easier, while reducing error and increasing safety!


Miller 9ft Turbo lite Capture.PNG

MIL MFL-1-Z7/9FT

Miller TurboLite Personal Fall Limiters

Cost-effective, compact and lightweight, Miller TurboLite Personal Fall Limiters make the need for shock-absorbing lanyards obsolete.

Reduces fall clearance requirements
Available in 6-ft and 9-ft lengths to meet the needs of a wide variety of applications
Extremely compact and lightweight, comparable to a shock-absorbing lanyard
Attaches directly to the back D-ring of a harness for increased mobility
High-impact resistant nylon housing and abrasion-resistant webbing provide long service life
Integral swivel prevents lifeline from twisting
Rated for up to a 400 lb. (181.4 kg) worker
Twin models available for 100% tie-off
Meets requirements of OSHA, ANSI Z359.14 Class A & B and CSA Z259.2.2.
Miller 6-foot TurboLite PFL

Ideal replacement for a 6-ft. shock-absorbing laynard
Ultra compact and lightweight

Miller 9-foot TurboLite PFL

Provides 9-ft. of working length, an ideal solution for scaffolding and order picker applications


Miller Twin Tubro G2 Connector Systems Capture.PNG

MIL MFLC-12-Z7/9FT

Miller Twin Turbo G2 Connector Systems

Better alternative to double-leg lanyards – Reduces fall clearance requirements for use in more applications.
PFLs swivel independently – Provides ultimate worker mobility and prevents webbing from twisting and binding in the unit.
Lightest-weight Twin Connector on the market – Increases productivity by reducing worker fatigue.
Superior durability – Corrosion resistant aluminum connector teamed with high-impact nylon result in a longer product life.
Superior safety – Webbing Retainer Clip rotates freely to prevent unintentional opening of carabiner gate during a fall increases worker safety.
D-Pad Clip – Maintains harness adjustment while working by keeping the harness webbing and D-Pad in place.
Twin Turbo G2 Connector meets all applicable standards including OSHA, ANSI and CSA.
Please call for more information also available

Miller TurboLite Edge Personal Fall Limiter

When The Job Takes You to the Edge: Depend on Miller

See below please call for More information


Miller Turbo Lite Edge Capture.PNG

MIller TR30-Z730ft Capture.PNG

MIL TR30-Z7/30FT

Titan Self-Retracting Lifelines

Titan Self-Retracting Lifelines are ideal for a full-range of applications including construction and general maintence

Affordably priced Quick-activating braking mechanism Variety of working lengths

Quick-activating stainless steel braking mechanism arrests free falls

Snap hook with swivel, carabiner included

TR20/20FT Titan Cable Self-Retracting Lifeline 20-ft. Galvanized Wire Rope [3/16"]; Composite housing.

TR30/30FT Titan Cable Self-Retracting Lifeline 30-ft. Galvanized Wire Rope [3/16"]; Composite housing.
TR50/50FT Titan Cable Self-Retracting Lifeline 50-ft. Galvanized Wire Rope [3/16"]; Composite housing.
TR65/65FT Titan Cable Self-Retracting Lifeline 65-ft. Galvanized Wire Rope [3/16"]; Composite housing.




Dynamic FP1001D Capture.PNG

DYN FP1001D

Dyna-Pro Universal & Professional Harnesses

he “DYNA-PRO” line of harnesses were designed for the ultimate in ease of harness donning, with light
weight breathable padding only where it is required. The “DYNA-PRO” has minimal body contact for a
superior fit and comfort. Most presently available padded harnesses have padding in areas that do not add
to the users comfort, in fact they actually create unnecessary hot zones. When wearing this harness the
user forgets that they are wearing it even if they wear it all day long. The “DYNA-PRO” harness is the lightest
in its category. It offers all the necessary cushion padding needed for maximum comfort and in no case
does the padding interfere with the mobility necessary to do the job.
The harnesses also come with bayonet style connectors which make it easy to put on and off. Available in
sizes Regular and Extra Large. These harnesses meet and exceed ANSI and OSHA regulations and is
CSA Certified.


Dynamic Welding harness Capture.PNG

DYN FPK2001BD

WELDERS HARNESS KEVLAR/NOMEX WEBBING 1D

Dyna-IFR Vest Style Welders Harness (Regular Large, X-Large)


Cable Sling.PNG

Cable Sling

Cable Slings with Hook & Ring

Cable sling with hook and Ring - stock lengths are 4 ft and 6 ft other lengths are available


Vertical Life Line Capture.PNG

PEA VL-1125-length

Vertical Life Line

Snap hook (anchor end), back splice (trailing end)

The PeakWorks VERTICAL LIFELINES are made from 5/8” Polysteel Rope or Kenrmantle Rope. Polysteel rope is an

extruded copolymer fiber that yields a high strength, light weight rope with good resistance to acids and alkalis.

Kernmantle rope is a rope manufactured by braiding a cover (mantle) over a core (kern) that is designed to optimize strength,

durability, and flexibility. Lifelines are available with a snap hook or quick lock carabiner.

The PeakWorks Vertical Lifelines are offered in a variety of standard lengths


Rope Grab Capture.PNG

PEA RG-11010

Rope Grab

PeakWorks RG-11010 Rope Grab is designed for use with 5/8” (16 mm) rope. There is a Panic Grab feature built into the

device to ensure the arrest of a fall even if the user pushes the cam upward in a panic situation. Each part is thoroughly

tested during the product development stage and is batch tested to confirm conformance.

Connecting Component: 1 ¼” Ring

Material: Steel with a corrosion resistant platting

Minimum Breaking Strength: 5,000 lbs (22.2 kN)

Number of Workers: 1

Weight: 2.0 lbs (.90 kg)

Capacity: 136 kg (30 lbs) for one worker (combined weight of person, tools, clothing, etc)

Operating Temperature: -35º C to +35º C

STANDARDS

Compliance: Certified to CSA Z259.2.1-98(R2004) & ANSI Z359.1-2007


20FT SRL LEADING EDGE Capture.PNG

PEA SRL-53302-20LE

SRL- 20ft LEADING EDGE

Self-Retracting Lifelines (SRL’s) are connectors that extend and retract as the worker moves around.

SRL’s use a locking mechanism similar to that of a seatbelt.

Under normal use, the worker can move about while the SRL keeps them connected between the harness and anchor point.

If the worker slips or falls, the mechanism locks the SRL, preventing further extension of the lifeline.

SRL’s offer the worker the greatest amount of mobility and work distance from the anchor point.

SRL’s offer shorter stopping distances that traditional lanyards.

Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge

Leading Edge SRL’s provide additional protection against sharp or abrasive surfaces found on many construction sites

A Leading Edge SRL can be mounted below a worker’s fall arrest D-Ring (please refer to instruction manual for details)

Certified to CSA Z259.2.2-98 (for non-Leading Edge applications) and ANSI Z359.14 (for Leading Edge applications)

No external shock absorber – We are the only manufacturer that offers LE certified units which can be used without external shock absorbers

Lightweight units can be mounted on a worker’s harness for better mobility and range of motion

All LE products are clearly marked to ensure the correct SRL is used for Leading Edge applications


PEA CSK3-60

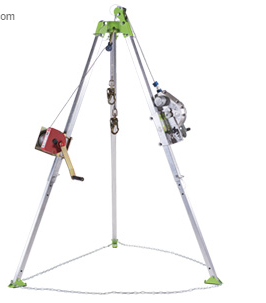

Confined Space Kit: Tripod, 3-Way 60' (18 m) SRL, 65' (20 m) Man Winch and Bag

Lightweight and portable, so you can take it with you from job to job, saving you time and money

Offers easy single-person setup

The PeakWorks series aluminum tripod features adjustable/locking legs, so you can find just the right fit for your applications

Non-slip rubber safety feet on all sides prevent the unit from moving

Features a safety chain and 2 attachment points on the steel head, for extra safety and security

Available in 7' (2 m)

SRL mounting fixture installed prior to shipping

V84537065 (MW-65G) winch using back plate and 4 bolts (carabiner & split pulley included)

Meets or exceeds CSA and OSHA requirements for confined space rescue

4:1 mechanical advantage makes rescue quick and easy, with an average retrieval speed of 25' (7.6 m) per minute

Corrosion-resistant stainless steel and aluminum components

V845534060 (SRL-53303-60) available with galvanized wire rope, 60' (18 m) in length

V84537065 (MW-65G) man/material winch with galvanized wire rope, 65' (19.8 m) in length

Meets OSHA, CE, ANSI A10.14, and CSA Z359.1 and Z259.2.2 Type 3 standards

SRL & winch capacity: 151 kg (310 lb) combined weight of person, tools, clothing, etc.

Operating Temperature: -35º C to +35º C


HYbrid Vertical Horizontal Capture.PNG

PEA T-LINE-40

Hybrid Vertical Horizontal Retractable Lifeline - 40' (12 m)

The most versatile fall protection system available, the T-Line Safety System is a totally new approach to fall protection that can be used in most applications, including many that either aren't supported by existing systems or require expensive specially engineered systems

Facilitates both horizontal and vertical freedom for the user. The system is self-retracting and self-tensioning

Functions as both a self-retracting lifeline and a horizontal lifeline

Works in both vertical and horizontal applications

Easy to install

Prevents the pendulum effect in the event of a fall

Shorter fall arrest distances over large spans than most horizontal lifelines

Each end can be mounted at different heights

Integrated rescue winch

Generates much lower forces on the anchors

Can be easily serviced

Also Available in 80ft


adjustable lanyard Capture.PNG

PEA SA-3400-6A

E4 Shock Absorbing Lanyard - SP - Single Leg - Snap Hooks - 6' (1.8 m) - Adjustable

Lanyards are engineered products, and the critical connection component between the body harness and the anchor. They are sometimes referred to as connectors.

PeakWorks lanyards are designed and tested to comply to strict CSA and ANSI standards.

There is a wide variety of lanyards to suit a wide range of applications.

There are two common types of lanyards: Fall Restraint and Fall Arrest.

Lanyards for fall arrest applications are designed using two types of shock absorbing technology: POY (Partially Oriented Yarn) and SP (Shock Pack).

The shock absorbing action of these lanyards limits and reduces the force of a fall on the worker, significantly reducing injury to the body.

SP (Shock Pack) lanyards are comprised of "tear webbing" which is woven in a manner that allows the webbing to tear when it has a load applied to it. This tearing absorbs a significant amount of downward force under load, reducing injury. This tear webbing is folded and shrink-wrapped into a compact 1 x 2 x 6" (2.5 x 5 x 15 cm) pack that is sewn into the lanyard next to the body connector.

Certified to CSA Z259.11-05 standards

Made with a superior grade, heavy-duty 1-3/4" (45 mm) or 1" (25 mm) polyester webbing for maximum strength or 1/4" (6 mm) galvanized plastic coated cable, with tear webbing shock absorber

A tear-away absorber limits the arrest force to a maximum of 900 lb (4 kN) for the E4 category or 1,300 lb (6 kN) for the E6 category

PeakWorks SP lanyards are available in two categories: E4 (worker weight of 100 to 254 lb [45 to 115 kg]) and E6 (worker weight of 200 to 386 lb [90 to 175 kg])
